使用Dockerfile基于wurstmeister/kafka的2.12-2.5.0搭建Kafka微服务环境

介绍

介绍

大家根福哥学会了使用Dockerfile创建Docker镜像的技巧了，那么我们现在搭建服务器环境就不需要再去下载软件的源代码了，也不需要编译安装了，更加不用操心软件和操作系统的各种兼容问题了。

今天福哥带着大家来安装kafka的环境，Kafka是消息队列软件，Kafka虽然是持久化的软件却可以简单地通过k8s进行负载均衡，这些我们在本课都可以跟福哥学到。

Kafka软件是依赖Zookeeper软件运行的，这里福哥会把zookeeper一起安装起来！

Zookeeper镜像

tag

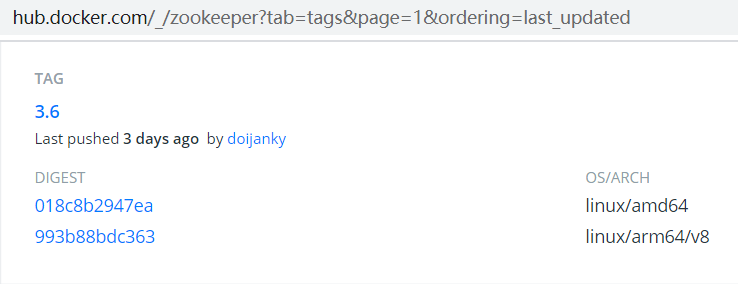

Zookeeper最新版本是3.7，福哥选择的是3.6版本。

home/topic/2021/0604/18/7ffda555b6de91273591831a13ba93ca.png

Kafka镜像

tag

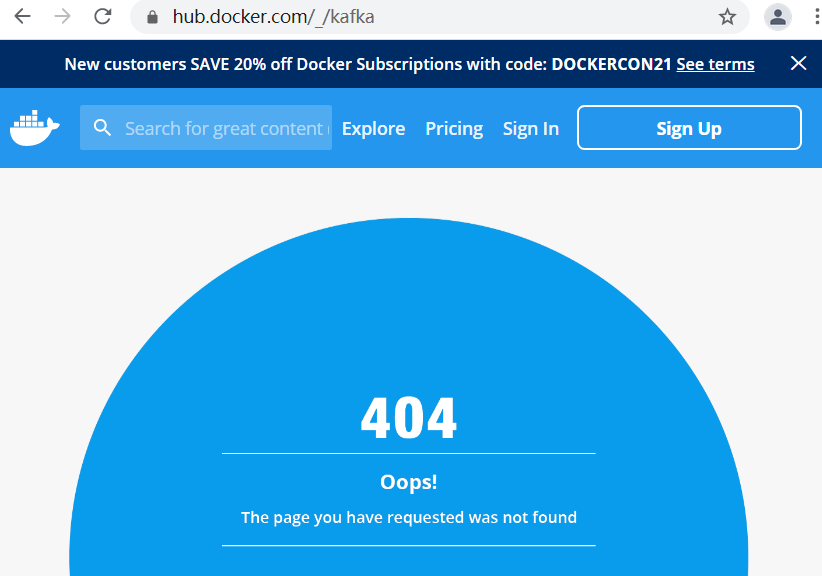

现在Kafka归Apache了，但是却没有官方的Kafka镜像。

home/topic/2021/0604/18/6e7b0c6d2801465ad802455d2127ad93.png

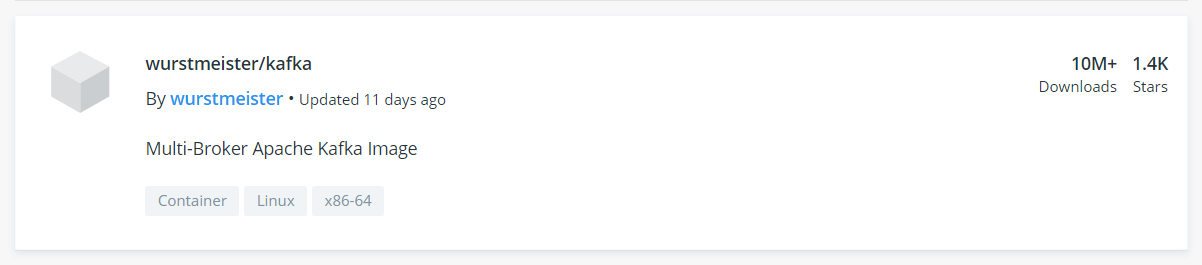

经过各种搜索福哥找到了一个三方提供的镜像，热度还挺高的！

home/topic/2021/0604/18/af03a6cb8633475a1edda5c114bffd51.png

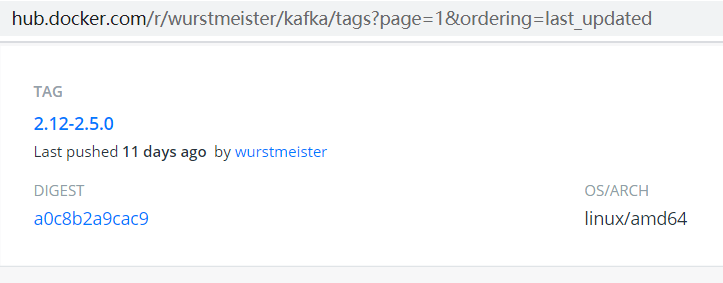

就是它了！wurstmeister/kafka是大家都比较推荐的第三方kafka镜像，目前最新版本就是2.12-2.5.0，福哥决定就来它了！
home/topic/2021/0604/18/41911d0ffb475c49f997fa6772a8ee0a.png

结构

照例我们先把镜像拉取下来，然后启动一个容器，看看里面都有什么，弄明白了自己才好捣鼓啊！

拉取镜像

docker pull zookeeper:3.6
docker pull wurstmeister/kafka:2.12-2.5.0

创建数据卷

和前面的php和python不同，我们需要建立一个数据卷用来给Elasticsearch存储数据使用。

由于elasticsearch的数据和日志在不同位置，所以福哥建立了两个数据卷。

docker volume create es6.8.15-db
docker volume create es6.8.15-log

启动临时容器

启动容器的时候需要指定数据卷映射到容器内部。

docker run -tid --name es6.8.15 -h es6.8.15 -v es6.8.15-db:/var/lib/elasticsearch -v es6.8.15-log:/var/log/elasticsearch elasticsearch:6.8.15

切入临时容器

docker exec -ti es6.8.15 /bin/bash

查看结构

进入容器后，全局查找一番，发现原来elasticsearch部署在了/usr/share下面。

elasticsearch的配置文件在/usr/share/elasticsearch/config/elasticsearch.yml里面。

/usr/share/elasticsearch/config/elasticsearch.yml

[root@es6 elasticsearch]# find / -iname "*elasticsearch*"
/usr/share/elasticsearch
/usr/share/elasticsearch/config/elasticsearch.yml
/usr/share/elasticsearch/config/elasticsearch.keystore
/usr/share/elasticsearch/bin/elasticsearch-cli
/usr/share/elasticsearch/bin/elasticsearch-translog
/usr/share/elasticsearch/bin/elasticsearch-service-x64.exe
/usr/share/elasticsearch/bin/elasticsearch
/usr/share/elasticsearch/bin/elasticsearch-shard.bat
/usr/share/elasticsearch/bin/elasticsearch-syskeygen
/usr/share/elasticsearch/bin/elasticsearch-setup-passwords.bat
/usr/share/elasticsearch/bin/elasticsearch-saml-metadata.bat
/usr/share/elasticsearch/bin/elasticsearch-keystore.bat
/usr/share/elasticsearch/bin/elasticsearch-croneval.bat
/usr/share/elasticsearch/bin/elasticsearch-certutil.bat
/usr/share/elasticsearch/bin/elasticsearch-cli.bat
/usr/share/elasticsearch/bin/elasticsearch-env.bat
/usr/share/elasticsearch/bin/elasticsearch-certgen.bat
/usr/share/elasticsearch/bin/elasticsearch-sql-cli-6.8.15.jar
/usr/share/elasticsearch/bin/elasticsearch-migrate
/usr/share/elasticsearch/bin/elasticsearch-sql-cli
/usr/share/elasticsearch/bin/elasticsearch-service-mgr.exe
/usr/share/elasticsearch/bin/elasticsearch-enve
/usr/share/elasticsearch/bin/elasticsearch-service.bat
/usr/share/elasticsearch/bin/elasticsearch-migrate.bat
/usr/share/elasticsearch/bin/elasticsearch-setup-passwords
/usr/share/elasticsearch/bin/elasticsearch-plugin
/usr/share/elasticsearch/bin/elasticsearch-croneval
/usr/share/elasticsearch/bin/elasticsearch-users
/usr/share/elasticsearch/bin/elasticsearch-sql-cli.bat
/usr/share/elasticsearch/bin/elasticsearch-saml-metadata
/usr/share/elasticsearch/bin/elasticsearch-certutil
/usr/share/elasticsearch/bin/elasticsearch-plugin.bat
/usr/share/elasticsearch/bin/elasticsearch.bat
/usr/share/elasticsearch/bin/elasticsearch-keystore
/usr/share/elasticsearch/bin/elasticsearch-syskeygen.bat
/usr/share/elasticsearch/bin/elasticsearch-shard
/usr/share/elasticsearch/bin/elasticsearch-certgen
/usr/share/elasticsearch/bin/elasticsearch-env
/usr/share/elasticsearch/bin/elasticsearch-translog.bat
/usr/share/elasticsearch/bin/elasticsearch-users.bat
/usr/share/elasticsearch/modules/lang-painless/elasticsearch-scripting-painless-spi-6.8.15.jar
/usr/share/elasticsearch/modules/x-pack-ml/elasticsearch-grok-6.8.15.jar
/usr/share/elasticsearch/modules/reindex/elasticsearch-ssl-config-6.8.15.jar
/usr/share/elasticsearch/modules/reindex/elasticsearch-rest-client-6.8.15.jar
/usr/share/elasticsearch/modules/x-pack-monitoring/elasticsearch-rest-client-6.8.15.jar
/usr/share/elasticsearch/modules/x-pack-monitoring/elasticsearch-rest-client-sniffer-6.8.15.jar
/usr/share/elasticsearch/modules/ingest-common/elasticsearch-dissect-6.8.15.jar
/usr/share/elasticsearch/modules/ingest-common/elasticsearch-grok-6.8.15.jar
/usr/share/elasticsearch/lib/elasticsearch-x-content-6.8.15.jar
/usr/share/elasticsearch/lib/elasticsearch-6.8.15.jar
/usr/share/elasticsearch/lib/tools/security-cli/elasticsearch-security-cli-6.8.15.jar
/usr/share/elasticsearch/lib/tools/plugin-cli/elasticsearch-plugin-cli-6.8.15.jar
/usr/share/elasticsearch/lib/elasticsearch-secure-sm-6.8.15.jar
/usr/share/elasticsearch/lib/elasticsearch-cli-6.8.15.jar
/usr/share/elasticsearch/lib/elasticsearch-core-6.8.15.jar
/usr/share/elasticsearch/lib/elasticsearch-launchers-6.8.15.jar
/tmp/elasticsearch-9630971463160703342
/tmp/hsperfdata_elasticsearch
/var/spool/mail/elasticsearch

停止临时容器

docker stop es6.8.15

删除临时容器

docker rm es6.8.15

Dockerfile

最后福哥把前面的设置命令整理到一起写成Dockerfile，这样大家就可以通过Dockerfile安装环境了。

elasticsearch.yml

首先福哥建立了一个配置文件elasticsearch.yml，把自定义的参数写到里面去，导入到镜像里面。
福哥只把path.data和path.logs改了一下，其他没有动！

# elasticsearch.yml

cluster.name: "docker-cluster"
network.host: 0.0.0.0
http.port: 9200

path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch

Dockerfile

创建Dockerfile，将elasticsearch.yml直接覆盖默认配置文件/usr/share/elasticsearch/config/elasticsearch.yml。

FROM elasticsearch:6.8.15

MAINTAINER Andy Bogate
MAINTAINER tongfu@tongfu.net
MAINTAINER http://docker.tongfu.net

EXPOSE 9200

# config
COPY elasticsearch.yml /usr/share/elasticsearch/config/elasticsearch.yml

/var/lib/elasticsearch不可写

和MongoDB一样的问题，Elasticsearch也需要给数据卷目标授权，否则就会报错了。
home/topic/2021/0521/15/5cdcf296307de9ba28690cc69cf753e9.png
使用docker valume inspect查看数据卷es6.8.15-db和es6.8.15-log的宿主机路径，授权777权限。

home/topic/2021/0521/15/c306c455d96ec2823593e8197cf8985c.png
然后重新创建容器，这下终于成功了！
home/topic/2021/0521/15/5e633b9f2e5cbf8ed39aca5d1ede7056.png

总结

今天福哥带着大家使用Dockerfile搭建了Elasticsearch微服务环境了，可以发现使用Dockerfile方式搭建环境我们真的只需要关心我们需要关心的部分，繁琐的编译参数、依赖库、环境参数等等一系列的问题基础镜像都给我们解决好了。
下一课，福哥会带着搭建学习使用Dockerfile搭建Nginx环境，敬请期待~~
